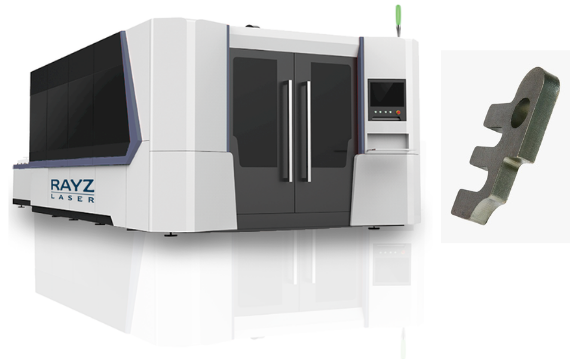

Cnc Fiber Laser Metal Cutting Machine (Edge)

EDGE

Application

Features

  • Medium size power
  • Value for money
  • Operator safety concerned
  • Keep working environment better
  • Reduce Production time
  • Panel Ac for Laser Power Source
  • No Gas Alarm
  • Over Travel Protection

Standards

  • Working size 3000 x 1500
  • Dual Pallet for working metal sheet to reduce load/ unload time
  • Close Body ( with Side covers)
  • High Pressure Proportional Valve ( can control high pressure during piercing)
  • Panel AC for Laser source
  • Seek edge function
  • Automatic height sense of material
  • Fly cut * No Gas Alarm
  • Overload Alarm
  • Over Temperature Alarm

Options

  • Working size 4000 x 2000 / 6000 x 2000
  • Close from Top
  • Separate cabinet for control panel

Cutting Parameters

2000 W IPG / Max / Raycus

Material Thickness（mm） GAS Speed（m/min） Laser Power（W）
Carbon steel
（Q235B）		 1 N2/Air 45~47 2000
2 N2/Air 16~17 2000
3 O2 3.4~3.6 2000
4 O2 3.1~3.2 2000
6 O2 2.4~2.5 2000
8 O2 1.5~1.7 2000
10 O2 1.2~1.4 2000
12 O2 1~1.1 2000
14 O2 0.9~1.0 2000
16 O2 0.8~0.85 2000
18 O2 0.7~0.75 2000
20 O2 0.55~0.6 2000
Stainless steel
（SUS304）		 1 N2/Air 45~48 2000
2 N2/Air 14~15 2000
3 N2/Air 6.5~7 2000
4 N2/Air 3.5~4 2000
5 N2/Air 2~2.2 2000
6 N2/Air 1.3~1.5 2000
8 N2/Air 0.7~0.8 2000
10 N2/Air 0.55~0.6 2000
Al 1 Air 30~32 2000
2 Air 12~13 2000
3 Air 5.5~6 2000
4 Air 2.5~3 2000
6 Air 0.9~1.1 2000
8


Brass 1 Air 27~30 2000
2 Air 10~11 2000
3 Air 4~4.5 2000
4 Air 2~2.3 2000
6 Air 0.7~0.8 2000
8


3000 W IPG / Max /Raycus

Material Thickness（mm） GAS Speed（m/min） Laser Power（W）
Carbon steel
（Q235B）		 1 N2/Air 58~60 3000
2 N2/Air 27~29 3000
3 N2/Air 9~11 3000
O2 3.9~4.1 3000
4 O2 3.4~3.6 3000
6 O2 2.7~2.8 3000
8 O2 2.1~2.3 3000
10 O2 1.4~1.6 3000
12 O2 1~1.1 2200~2400
14 O2 0.9~0.95 2200~2400
16 O2 0.8~0.85 2200~2400
18 O2 0.7~0.72 2200~2400
20 O2 0.6~0.65 2200~2400
22 O2 0.55 2200~2400
25 O2 0.5 2200~2500
Stainless steel
（SUS304）		 1 N2/Air 59~61 3000
2 N2/Air 23~25 3000
3 N2/Air 9~11 3000
4 N2/Air 7~9 3000
6 N2/Air 3.1~3.3 3000
8 N2/Air 1.2~1.3 3000
10 N2/Air 0.75~0.8 3000
12 N2/Air 0.6 3000
Al 1 Air 49~51 3000
2 Air 16~18 3000
3 Air 7~8 3000
4 Air 4~4.5 3000
6 Air 1.8~2.0 3000
8 Air 0.7~0.8 3000
Brass 1 Air 49~51 3000
2 Air 15~16 3000
3 Air 6~7 3000
4 Air 3~4 3000
6 Air 1.5~1.8 3000
8 Air 0.6~0.7 3000

Dimension

  • 4750*2300*2000mm (Single Pallet -working Area 3000x1500)
  • 8500*2700*2300mm (Dual Pallet- Working Area 3000x1500)
