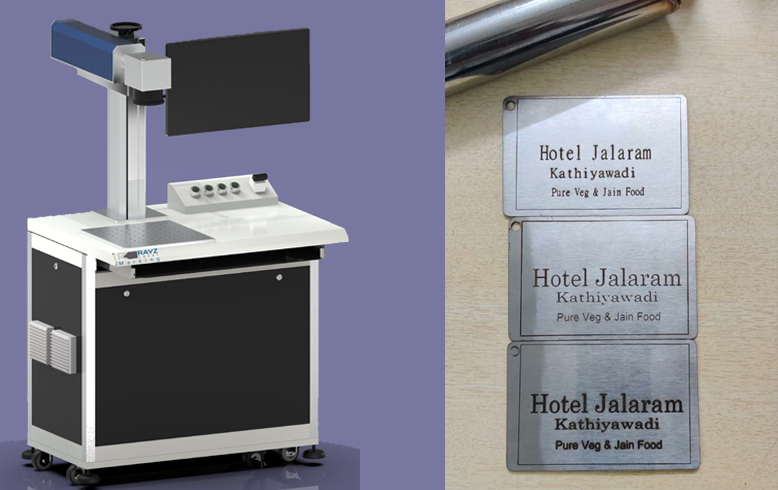

Fiber Laser Marking Machine

Fiber Laser Marking Machine

Application

Features

  • Excellent light quality :

    • Comparing with traditional solid laser marking/engraving machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking/engraving.

  • Low usage cost:

    • Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500W, it is the 1/10 of laser pump lamp marking machine. It greatly saves the cost in power consumption.

  • Free maintenance & long service life:

    • Using laser diode as the source of pump, full sealing light path design, its average no-failure operation is over 100 thousand hours.

  • Fast process speed:

    • Its processing speed is 5-10 times faster than traditional laser marking machine.

Standards

Laser wavelength

 1064nm

Power adjustment range

 10-100%

Repetition frequency

 20-80KHz

Output beam quality

 <1.8m²

Marking linear depth

 0.01-0.2mm

Min. Spot diameter

 0.01mm

Min. Character size

 0.1mm

Repetition accuracy

 ±0.02mm

Max. Liner marking speed

 7000mm/s

Marking format

PLT, DXF, CDR, AI, DWG, etc.

Software

EZCAD

Standard marking area

20W     150×150mm
30W     180×180mm
50W     300×300mm

Power consumed

<500W

Electrical demand

220V  10%/50Hz/4A

Cooling mode

Air-cooling

Control interface

USB

Laser source

Raycus / Max

Computer

WIN7/10

Machine Size & Weight

880×650×1350mm  80Kg

Dimension

Dimensions 880×650×1350mm
Weight 80kg
  • Rotary
  • Automation (Robotic)
